Technical Parameters ：

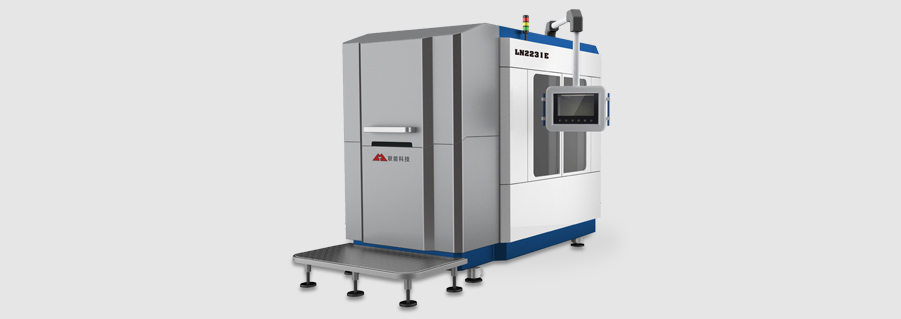

Model	LN2231E	LN2231ER
Max.Product Size(LxWxH)	220x310x200mm	220x310x200mm
Workbench stroke		X向25mm,Y向140mm
Steel wire(NumberxdiaxW)	3x140x260	3x140x310
Stripping diameter	0.12-0.3mm	0.12-0.3mm
Cutting speed	0.1-999.9mm/h	0.1-999.9mm/h
Wire speed	0-900m/min	0-900m/min
Wire storage	20kg	20kg
Power	AC380V，50HZ	AC380V,50HZ
Total power	<15kw	<15kw
Dimensions	2620x1620x2300mm	2620x1520x2300mm
Sand bucket volume	100L	75L / 100L
The thickness of the slice	0.2-5mm	0.2-5mm
Parallelism of slice	0.02mm	0.02mm
Air/gas consumption	0.2-0.7MPa/400L/min	0.2-0.7MPa/400L/min

Features ：

◆ LN2231ER multi-line cutting machine is my company in order to meet customers to improve the production of arc-cutting efficiency and higher economic requirements of R & D models.
◆ This model is our high-speed medium-sized machine in multi-line cutting machine. It is mainly used to process all kinds of hard and brittle materials into 5mm thickness sheet. It adopts a smaller number of wire wheels to adapt to customers. The processing efficiency, operational stability, process availability and higher economic requirements. The model to ensure high accuracy, high reliability, under the premise of achieving a significant increase in processing efficiency.
◆ machine control system components and bearings, linear guides, ball screws, belts and other mechanical parts are imported high-quality brand-name products.
◆ The key parts of the spindle system are made of high-quality special steel and heat treatment by multi-channel, machining and surface treatment process and then by precision grinding grinding.
◆ Pay-off, take-up, cable, spindle operation, cutting line tension, the table into the use of servo motor drive and control.
◆ mature and comprehensive intelligent control system organically embedded in the accumulation of years of the formation of the perfect process system.
◆ New design, generous, the main operating parts of stainless steel sheet metal structure.
◆ The accuracy of the machine stability, reliability and operation of steel wire speed has reached similar models at home and abroad advanced level, while the machine has a wide range of process applicability.
